Hole geometry
Round, square or decorative concepts require a drawing showing diameter, pitch, margins and orientation.
Product details
Perforated metal ceiling panels.
A perforated metal ceiling brief defines the hole pattern, open area, edge geometry, finish and installation interface together.
Panel specification
Define the panel construction.
Acoustic or fire ratings depend on the complete tested panel and ceiling assembly. Project-specific test documentation is required to state these performance values.
- Base material and thickness
- Hole shape, diameter, pitch and layout
- Panel module and formed edge
- Open-area target and visible-face direction
- Finish, color and backing requirements

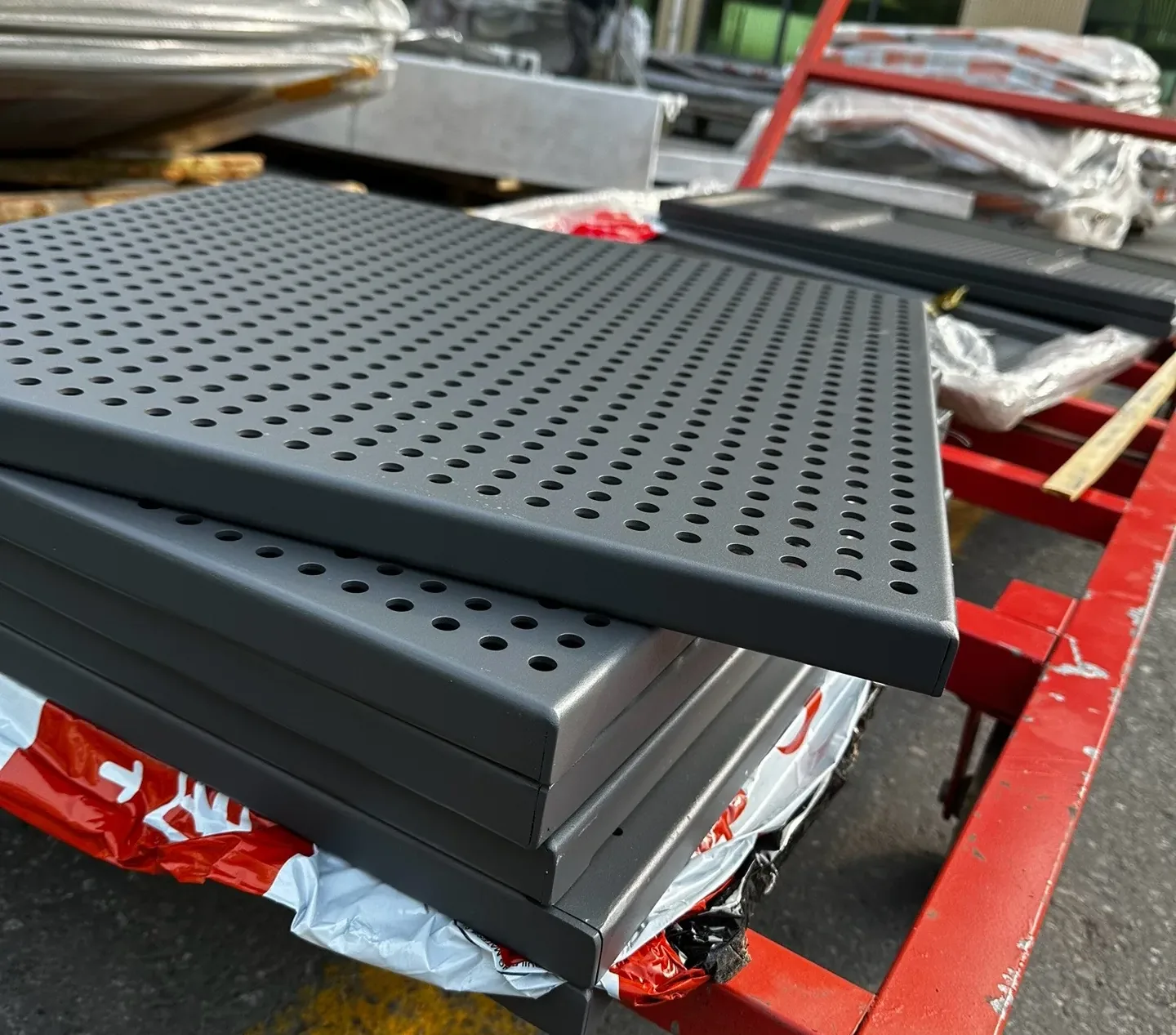

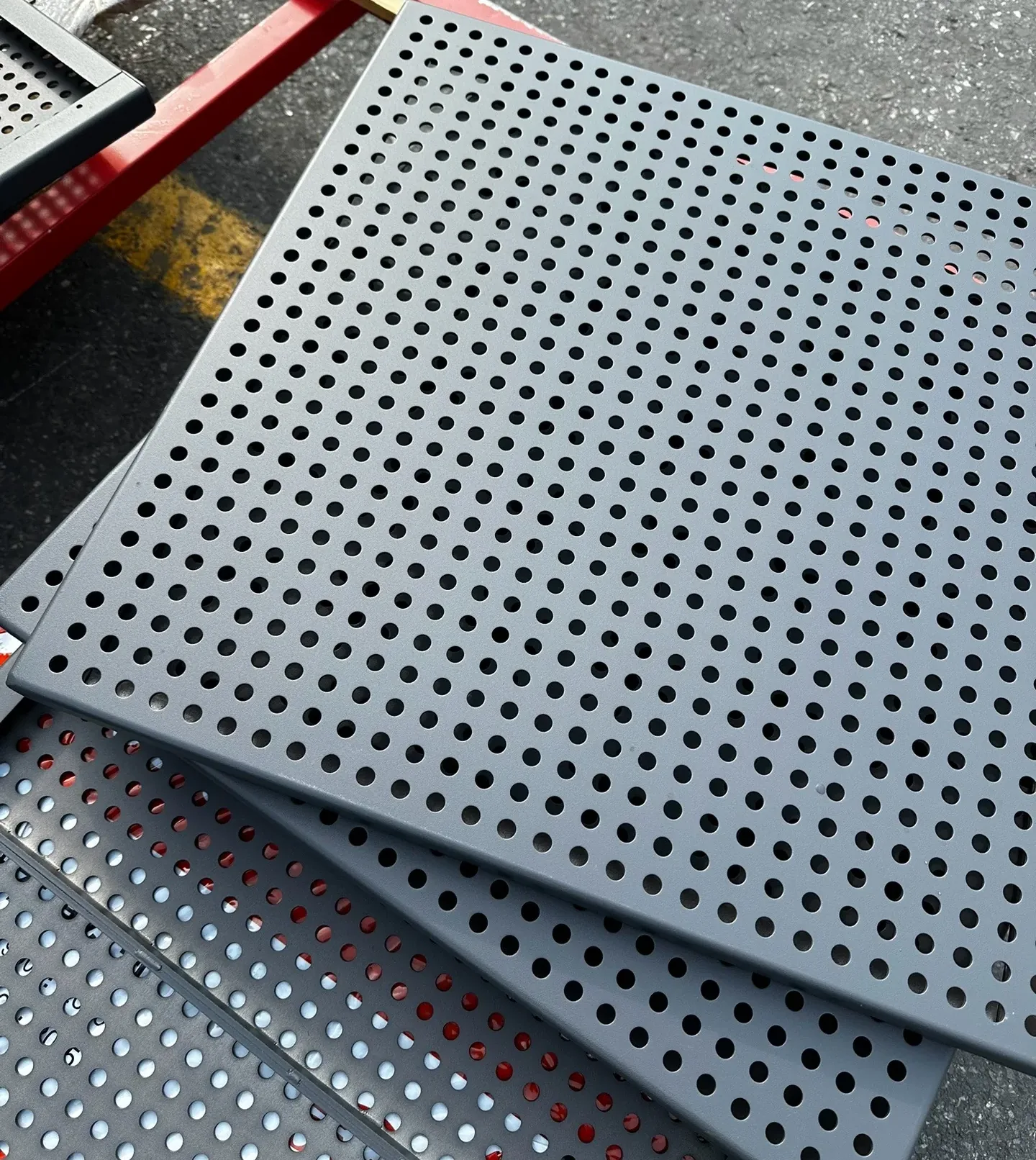

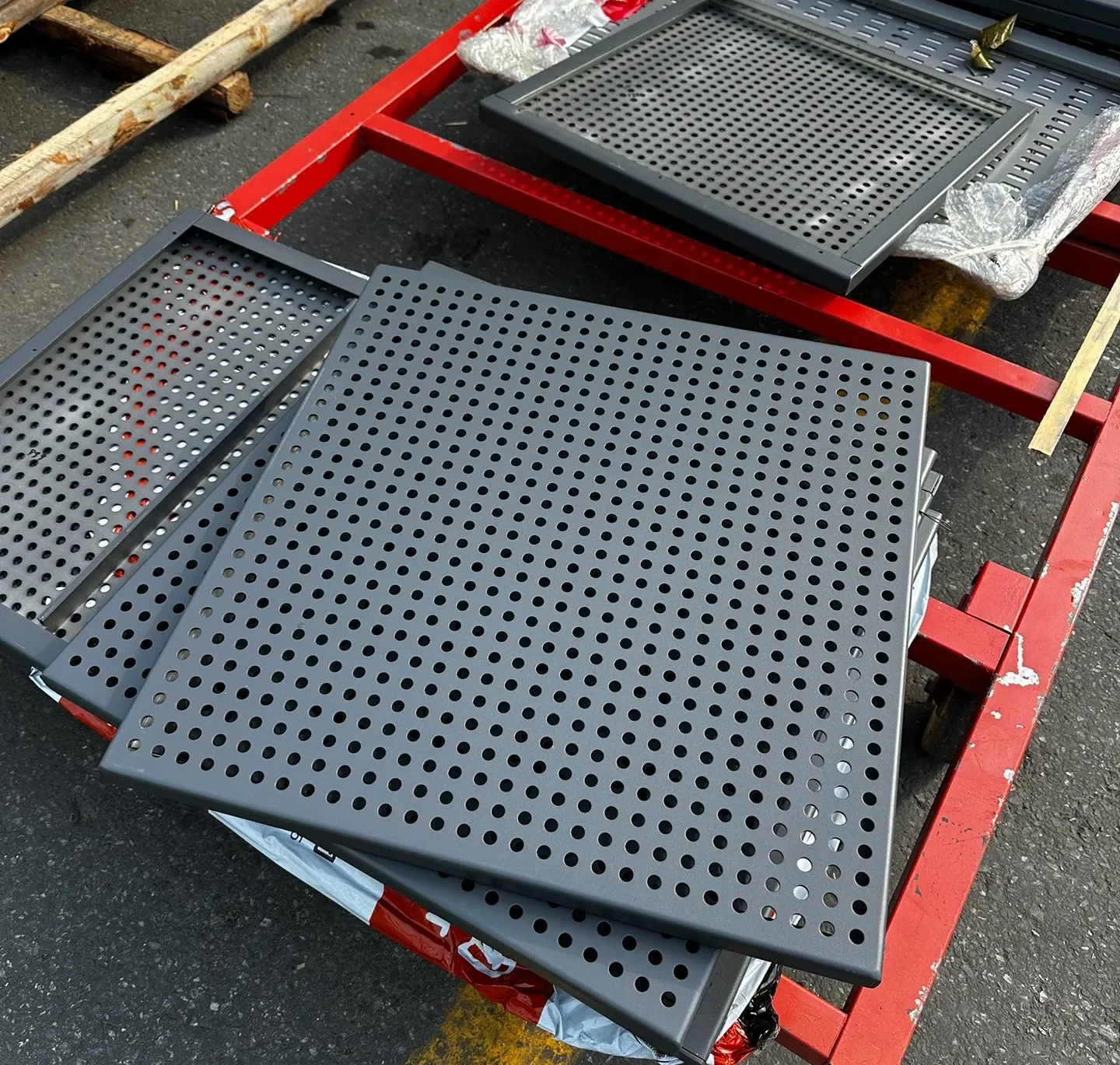

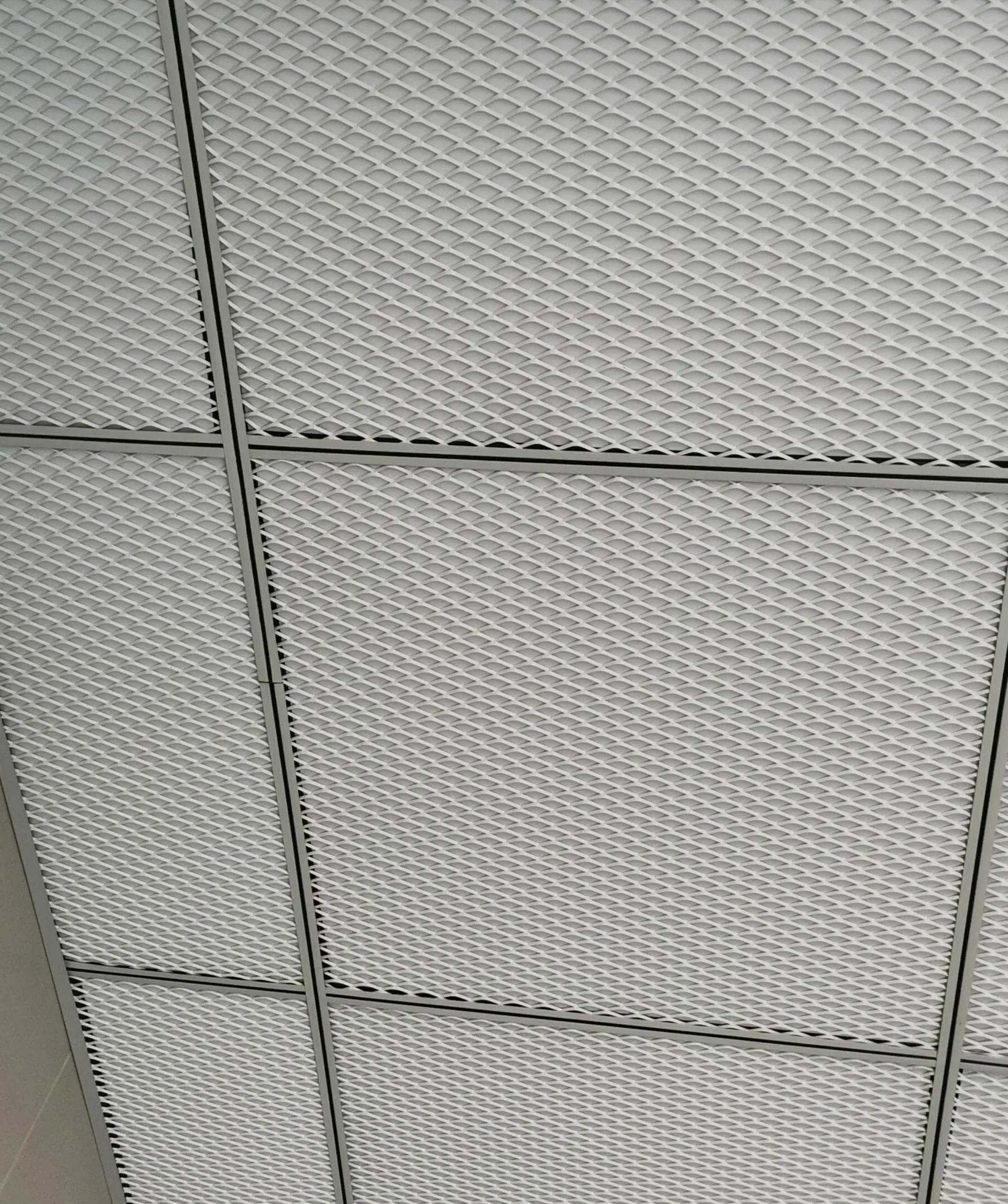

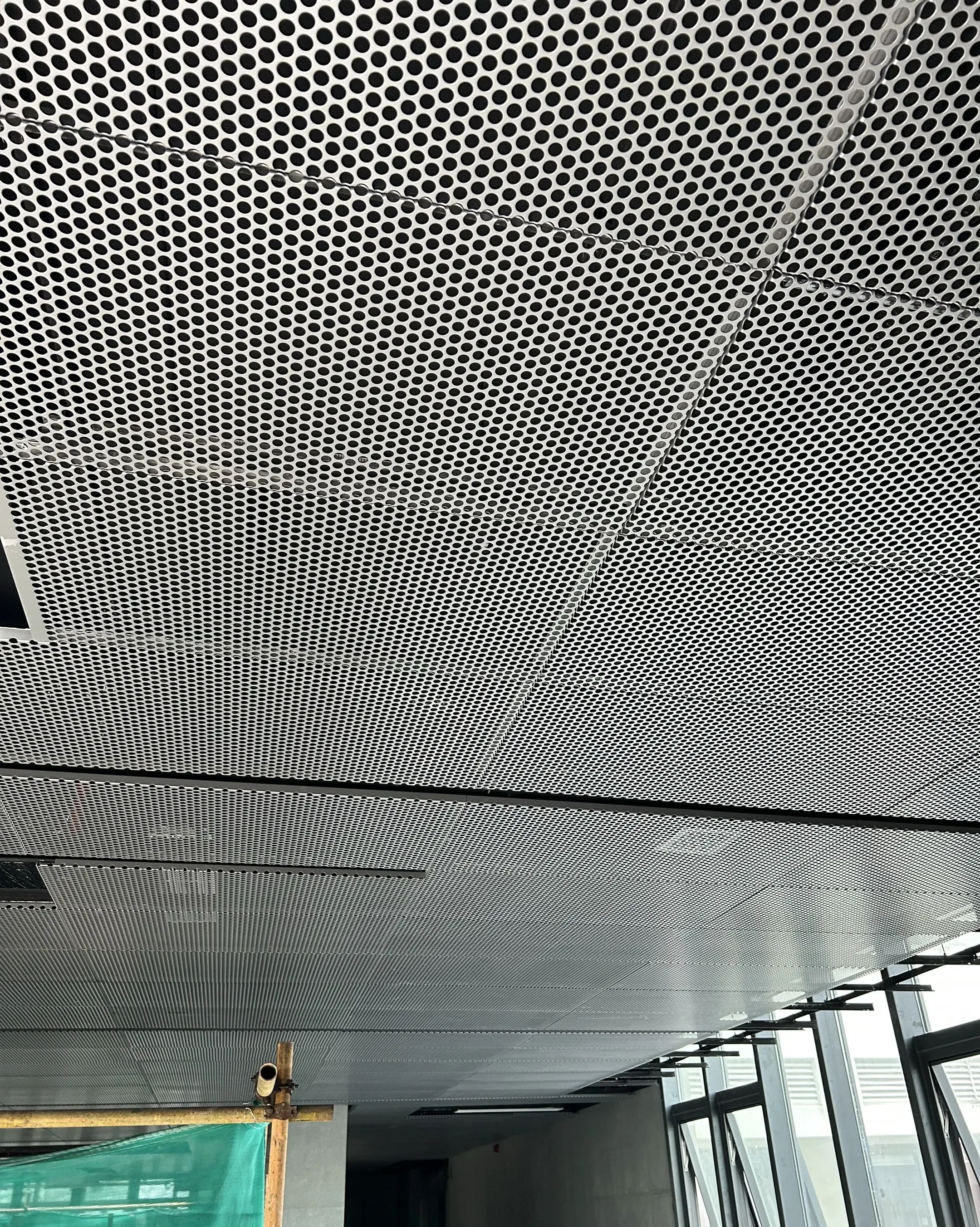

Perforated panel references
See the hole pattern, panel edge and ceiling grid.
The photographs show panel layouts, patterns and edges for project discussion. Confirm the selected configuration against the project drawing and sample.
Configuration areas
Custom perforated ceiling panels start with the drawing.
Decorative perforated ceiling panels can vary by pattern, edge and visible finish. Available ranges must be verified with the actual production route before quotation.

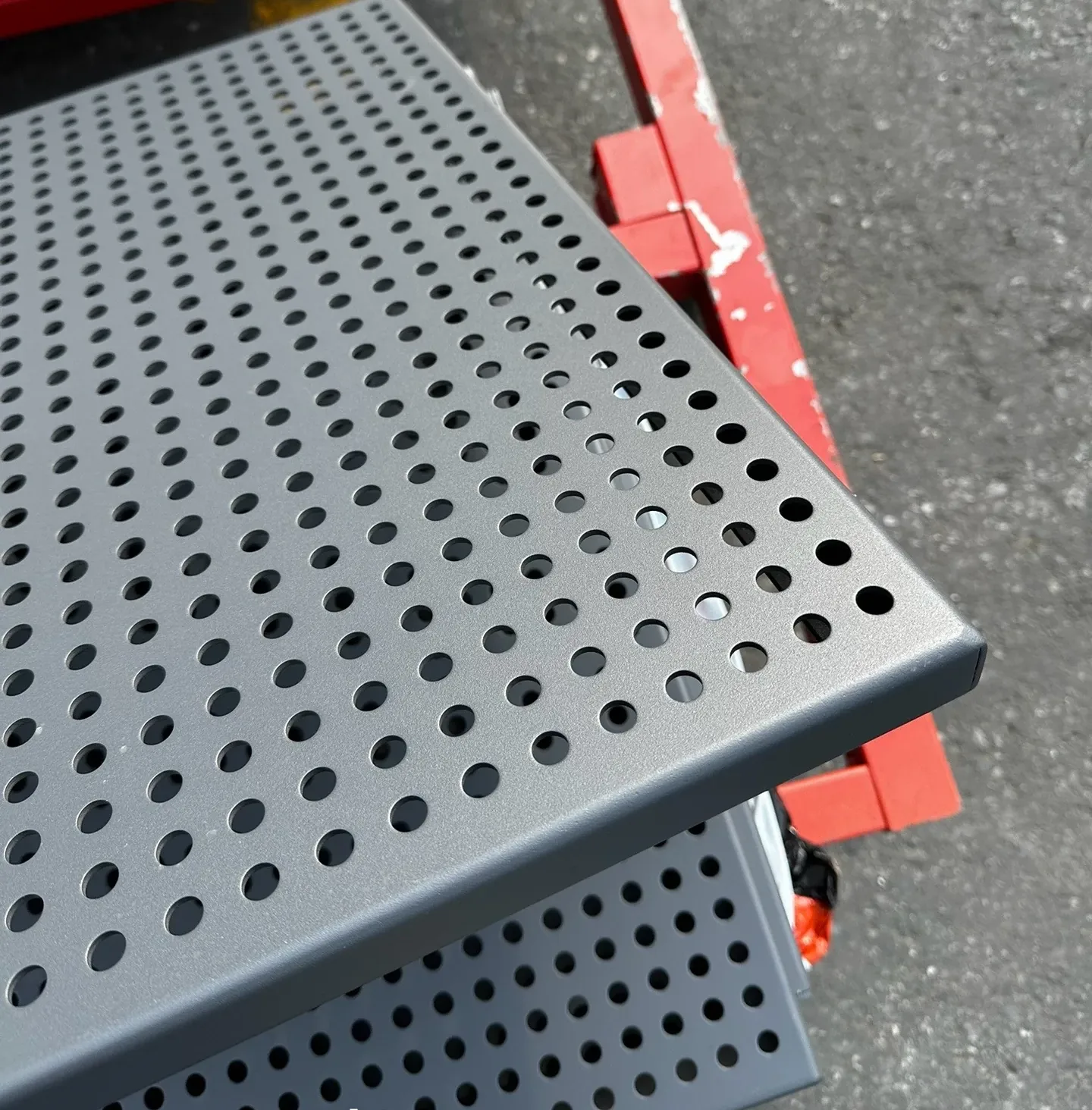

Edge construction
Flat sheet, folded return or project-specific edge details must coordinate with the support system.
Visible surface
Color, gloss, coating and acceptable appearance are confirmed against an approved reference.
Your RFQ checklist
Send enough detail to avoid assumptions.
- Material grade and sheet thickness
- Hole pattern drawing and open-area requirement
- Panel dimensions and edge section
- Backing or acoustic construction, if applicable
- Finish, quantity, packing and destination
If your drawing calls for perforated aluminum ceiling panels, include the alloy or grade and visible finish. Material and forming feasibility require review.
Acoustic, fire and structural performance can only be discussed against an identified construction and supporting evidence.
Before sampling
Resolve the edge and visible face.
A hole pattern alone does not define the finished panel. Share the border margin, edge section, visible side and support interface so the sample can represent the intended module.
Questions
Perforated ceiling FAQ
Can hole patterns be customized?
Pattern customization can be reviewed from a drawing. Tooling, sheet size, edge margins and deformation risk determine feasibility.
Can an acoustic perforated metal ceiling be reviewed?
An acoustic concept can be discussed, but no absorption rating should be assumed without a tested panel, backing, cavity and installation construction.
Can a hook-on perforated metal ceiling match an existing carrier?
Provide the carrier profile, panel edge drawing and module size. Hook-on compatibility requires a specific interface and supplier review; it is not a standard claim here.
What information is required for pricing?
Material, thickness, hole pattern, module size, edge detail, finish, quantity, destination and drawings provide the minimum useful starting point.
